Equipment Used
- 300 Ton Minster
Expertise
- Engineering
- Tool Making
Technical Specifications
Overall Part Dimensions: 10.250″ x 13.500″ – 13.500″ x 26.500″
Tightest Tolerances: +/– .010″
Materials Used
- 3003 H14 Aluminum Sheet w/ Protective Vinyl
In Process Inspection / Testing
- CMM
- Visual Inspection for Cosmetics
Industry
Window and Door
Volume
50 – 500 pcs
Delivery / Turn-Around Time
- Tooling: 8-10 weeks
- Parts Lead Time: 1-3 Days
Location
Eastern Iowa
Product Name

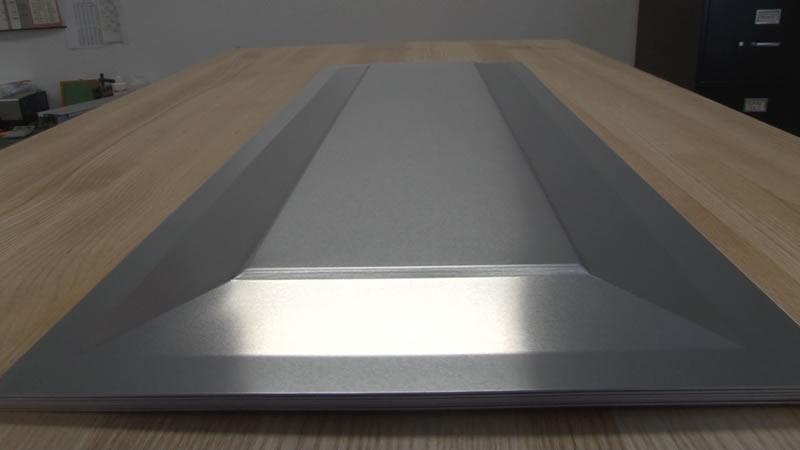

Raised Aluminum Panels
Value Proposition
- Short Lead Times
- Increased Quality
- Dimensional Flexibility
- Low-Cost Tooling
Summary
A Window and Door producer was looking for a low cost solution to varying sized door panels to be used in their door assemblies. Die Makers Mfg, following customer defined specifications produced low cost 4140 tooling that would produce the quantities and sizes they were looking for. Die Makers did this all while keeping costs transferred to the customer to a minimum.
